Agent plugins are able to communicate with remote devices using the Simple Network Management Protocol (SNMP) with the built-in SnmpSupport class, accessible through the Snmp property.



IsConnected

Determines whether the SNMP system is connected and authenticated.


Connect (SNMP v2)

It is recommended to use the existing connection, however if the SNMP system is not already connected the following method can be used to connect to the SNMP host. The community string will be stored in the code of the plugin in plain text.


SnmpSettings settings = new SnmpSettings();

settings.CommunityStrings.Add("public");

Snmp.Connect("devicename");


Connect (SNMP v3)

It is recommended to use the existing connection, however if the SNMP system is not already connected the following method can be used to connect to the SNMP host. The SNMP v3 password will be stored in the code of the plugin in plain text.


SnmpSettings settings = new SnmpSettings();

settings.Version = SnmpSettingsVersion.Three;

settings.Security.AuthenticationPassword.SetPassword("SecurePassword");

settings.Security.AuthenticationProtocol = Snmpv3AuthenticationProtocol.Md5;

settings.Security.PrivacyPassword.SetPassword("SecurePassword");

settings.Security.PrivacyProtocol = Snmpv3PrivacyProtocol.Aes256;

settings.Security.Username = "Snmpv3Username";

Snmp.Connect("devicename");


CommunityString

The currently active community string. This setting is not used for SNMP v3.


Contact

Gets the RFC1213 sysContact for the remote device.


Location

Gets the RFC1213 sysLocation for the remote device.


ObjectIdentifier

Gets the RFC1213 sysObjectID for the remote device.


ItemType

Gets the determined item type of the remote device.

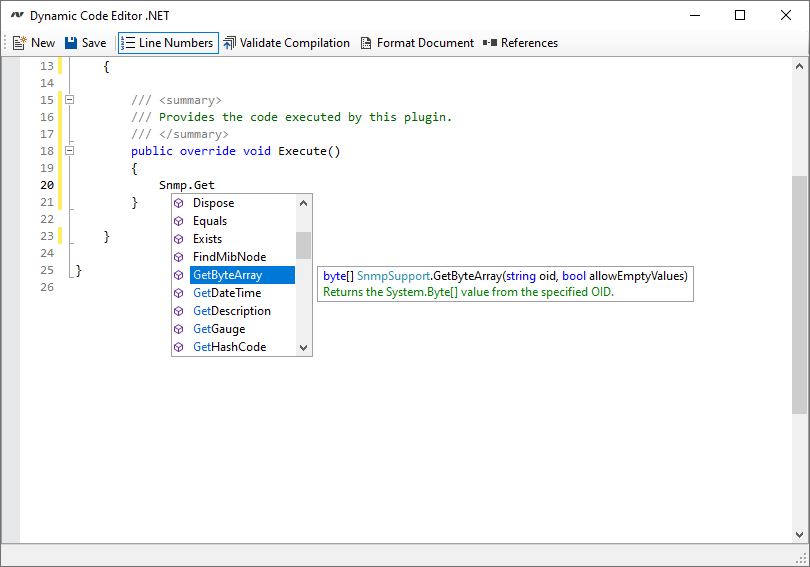

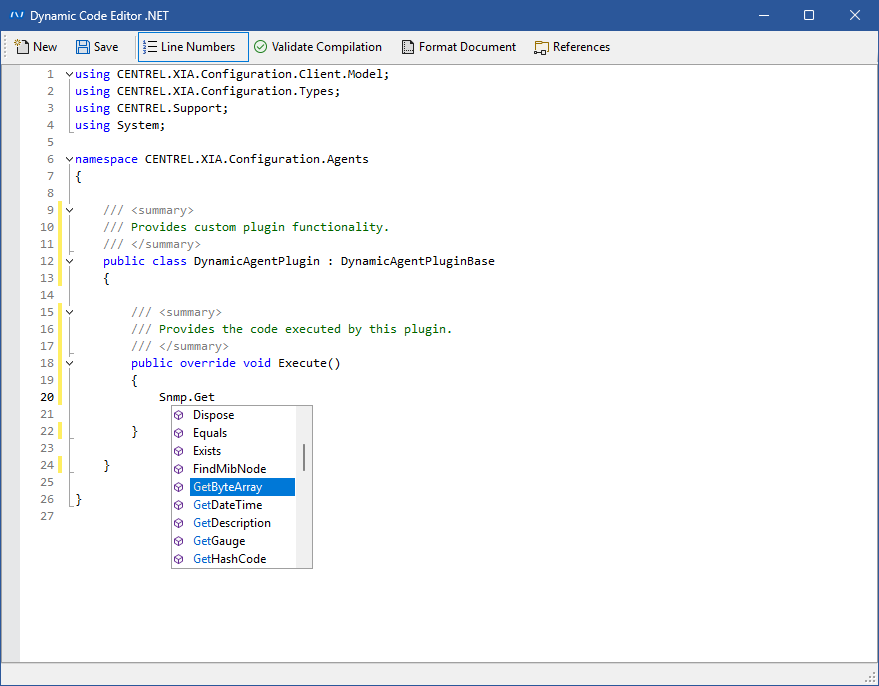

GetByteArray

Gets the System.Byte[] value from the specified OID.


GetInteger

Gets the System.Int32 value from the specified OID.


GetDateTime

Gets the System.DateTime value from the specified OID.


GetGauge

Gets the System.Int64 value from the specified OID.


GetMacAddress

Gets the MAC address as a System.String value from the specified OID.


GetString

Gets the System.String value from the specified OID.


String sysName = Snmp.GetString("1.3.6.1.2.1.1.5.0");


GetTable

Gets the SNMP table from the specified OID.


SnmpTable table = snmp.GetTable("1.3.6.1.2.1.2.2");

foreach (SnmpTableRow row in table.Rows)

{

    String interfaceDescription = row.GetString("1.3.6.1.2.1.2.2.1.2");

}


GetTimeTicks

Gets the System.TimeSpan value from the specified OID.


Disconnect

Disconnects from the remote SNMP device. This is done automatically by the system when the scan completes.


Dispose

Disconnects from the remote SNMP device, and disposes of the connection. This is done automatically by the system when the scan completes.


Settings

The settings used to establish the SSH connection.
